I probably should have posted these first as it was one of the initial things I had done.

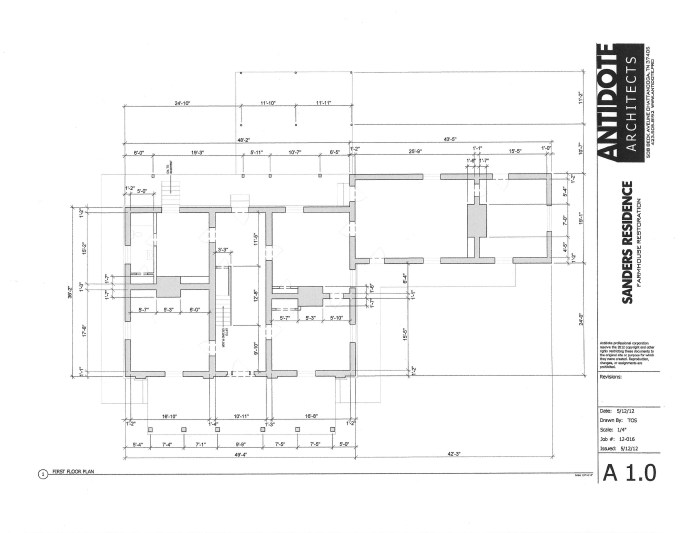

In the spring I had Antidote Architects out of Chattanooga come and take detailed measurements of the house to do a basic rendering. Something I had done on my own in the past but since my AutoCAD student version was expired I figured I should leave it up to the professionals this time.
Obviously this is not a detailed blueprint for construction purposes but it is a starting point and I needed a basic rendering like this to start planning the heating and cooling system, as well as the new electrical layout.
The thick shaded walls are the solid brick walls and all that were in the original house. They are staying as-is, but the other stud walls for the bathrooms and closets were added later and some have already been taken down. Soon I’ll have this rendering altered to show what the floorplan will look like!
